These four key tools are useful when creating take-offs in the Cordell Tab.

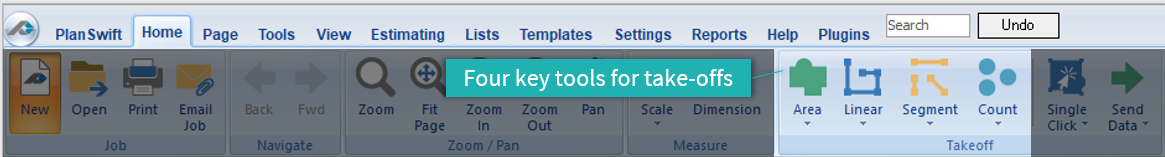

Image 1: Key tools for creating a take-off.
Each tool has a specific function to help you get quantity take-offs from your plan with greater speed and accuracy.
|
Tool |
Description |
|
Area |
Use this tool to measure the size of an area. |
|
Linear |
Use this tool to measure the continuous lineal meter of an area. |
|
Segment |
Use this tool to measure segments on a plan. |
|
Count |
Use this tool to perform a dot count of specific items or areas on a plan. |
All the items in the Cordell Tab are based on these four take-off icon types. In the example below, you can see that the initial sqm take-off for the concrete floor slab corresponds with the green Area icon, which contains the yellow sub-items connected to the main take-off. The other take-off icon types can also be seen in the Cordell Tab structure.

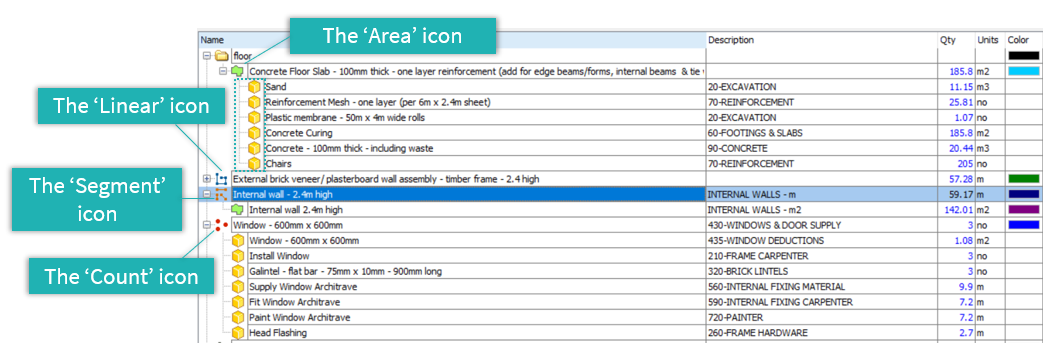

Image 2: Key tools for creating a take-off.
The yellow cube icon contains the formula calculations (for materials etc.) governed by the main take-off.

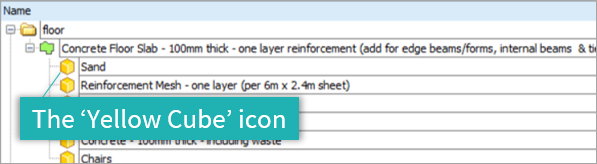

Image 3: Identifying the 'Yellow Cube' icon.
This main take-off will appear on the left side of the plan. You may also:
-
click on the yellow light bulb icons to switch each layer on or off on the plan
-
click on Estimating to view items and sub-items within each layer
-
click on Expand All to view all sub-items

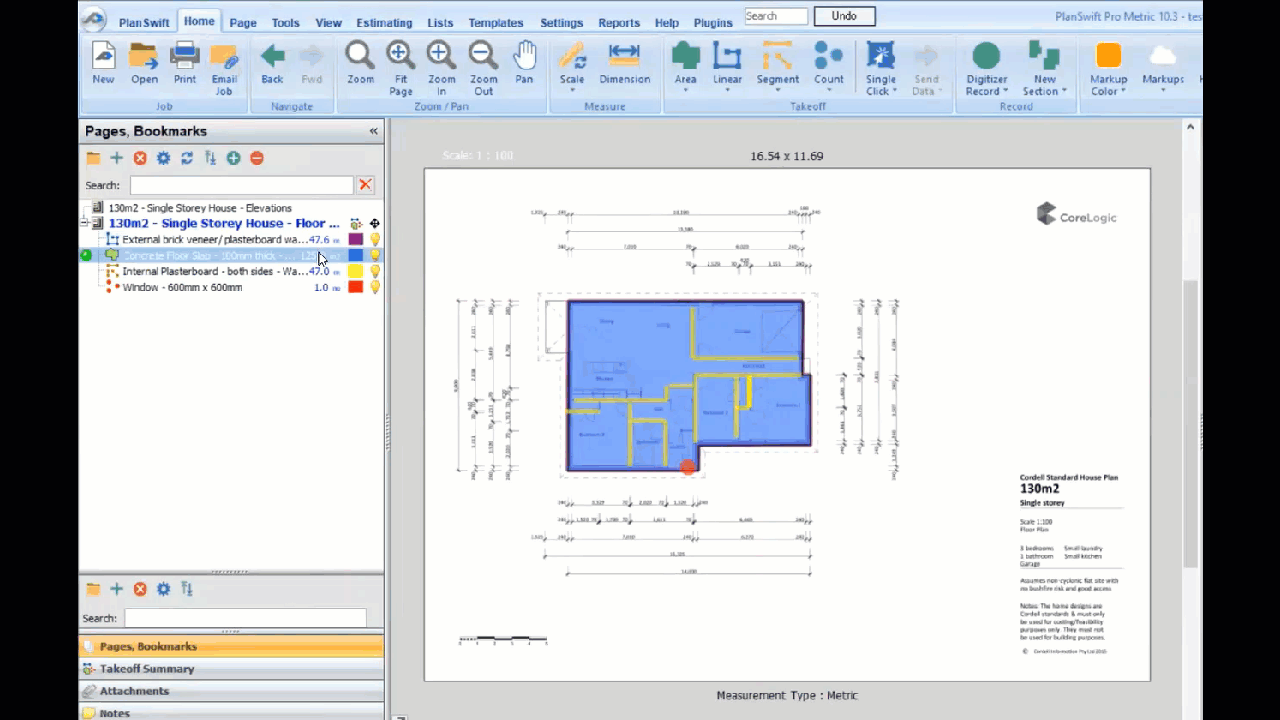

Image 4: Viewing sub-items
Refer to the Planswift tutorial video (forward to timecode 4:20) for a demonstration of how to use these key tools.
