There are two ways to scale a plan in Planswift:
Tip: After scaling a plan, it's important to check that the sizes on the plan are accurate. Refer to the Planswift tutorial video (forward to timecode 3:53) to see how to check sizes with the Dimension tool or read this article for a quick overview.
Open the plan you are working on then;
-
check that you are on the Home tab
-
click on the down arrow on the Scale icon
-
scroll down to view and select metric scale ratios

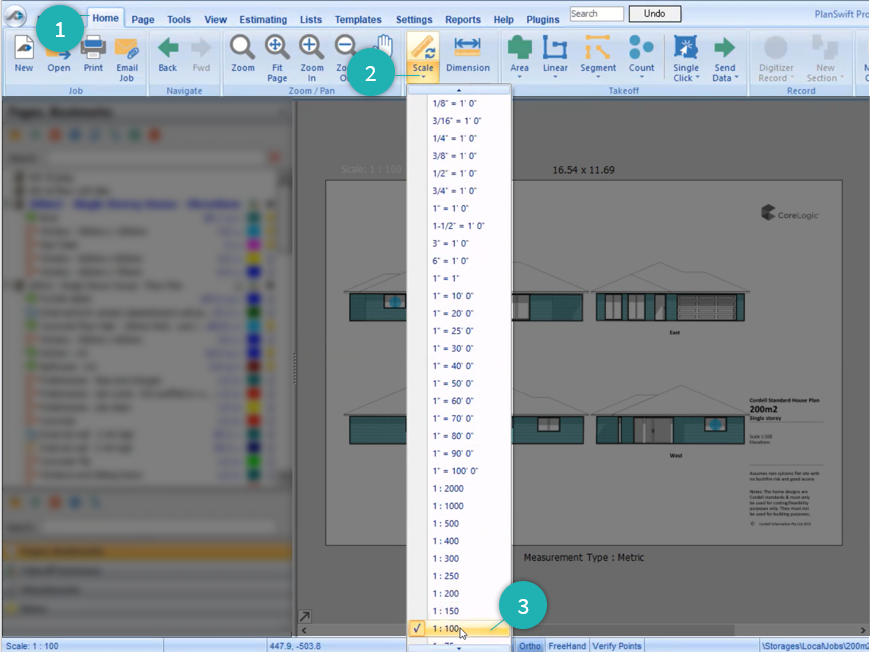

Image 1: Scaling a plan automatically.
Open the plan you are working on then;
-
check that you are on the Home tab
-
click on the Scale icon
-
you'll need to enter a height and width from your plan. Refer to the Planswift tutorial video (forward to timecode 3:06) for a step-by-step process.
-
click Ok to proceed
Image 2: Scaling a plan manually.
